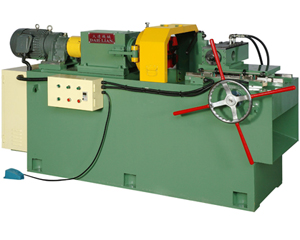

+ PIPE THREADING MACHINE

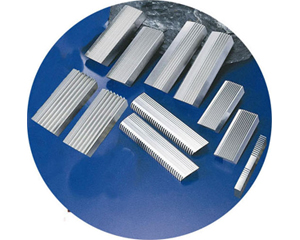

Chaser :
There is various type:PT, NPT, PS, NPS, UNC, C, W

> Features

  • Cutting motion of the machine is by screw & linear motion guide.
  • Vise System : Hydraulic cylinder

> Specification

MODEL Pipe O.D
(mm)
bar o.d
(mm)
bar length
(mm)
thread length
(mm)
thread pitch cutting motor oil pump overall dimension l
(cm)
w
(cm)
h
(cm)
net weight approx.
DL-TM-4 38.1-100 36.0-72 1000(min) 500(max) 4.0; 4.5; 5.0; 5.5; 6.0 10HP 2HP 314 127 152 2800 kgs
DL-TM-2 12.7-50.4 12.7-31.8 500(min) 200(max) 1.75-3.5 7.5HP 2HP 280 120 160 1800 kgs
