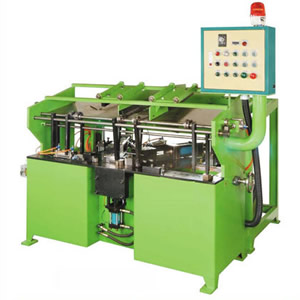

+ WIRE BENDING MACHINE

> Features

  • Automatic magazine loader with feeding, bending & unloading
  • PLC control
  • Hydraulic type

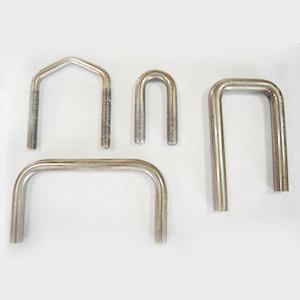

  • Bending to a semi-frame, U bolt, hook bolt & square shape, etc

> Specification

MODEL DL-WB08A DL-WB12A DL-WB20A DL-WB25A
FORMING TO SEMI-FRAM(2 Sides), U-BOLT ROUND BEND, U-BOLT
SQUARE BEND, HOOK BOLT BEND, SPECIAL SHAPE BEND FORMING
ROUND WIRE DIAMETER RANGE 4~8mm 4~12mm 6~20mm 10~25.4mm
WORKING LENGTHRANGE 120~1000mm 150~1000mm 160~1350mm 250~1650mm
MAIN MOTOR (HYDRAUUC) 5HP 7.5HP 10HP 15HP
PRODUCTION RATE(pieces/hour) 800~1200 720~1200 600~1200 500~1000
Machine Size(L x W x H) cm 170x140x185 180x150x200 220x170x210 270x190x220

DAH-LIAN MACHINE CO.,LTD.

Profession in manufacturing the machine for fastener production
