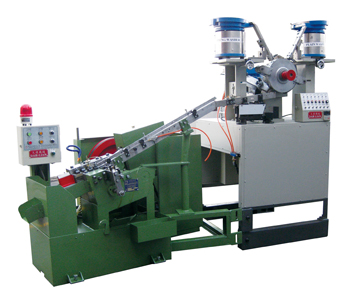

+ SEMS SCREW ASSEMBLY MACHINE

> Features

  • Machine is suitable for flat washer, spring washer, conical washer and square washer assembly.
  • Machine is easy to operate, adjust and maintenance
  • Machine has sorting function to separate unassembled screw.
  • Machine is with inverter to change speed according to actual running..

> Specification

Model Size Speed (pcs/min) Machine Dimension (LxWxH/mm) Net Weight (kg)
WA-34 M3/M4 x 12~30 150~200 1050x1000x2000 800
WA-56 M5/M6 x 12~40 100~120 2350x1900x2000 1000
WA-68 M6/M8 x 15~50 100~120 2350x2000x2000 1000
WA-810 M8/M10 x 15~50 100~120 2500x2000x2200 1100
WA-1012 M10/M12 x 60~100 100 2800x2300x2500 1300

* Please contact for more details or other sizes requested.

DAH-LIAN MACHINE CO.,LTD.

Profession in manufacturing the machine for fastener production
