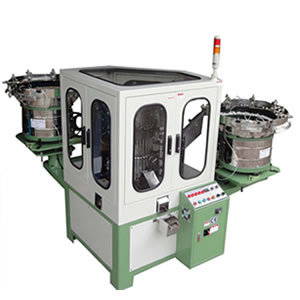

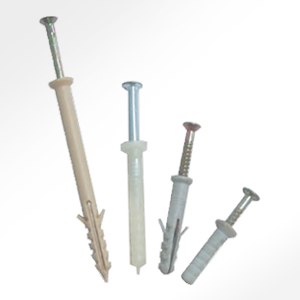

+ SCREW WITH NYLON ANCHOR ASSEMBLY MACHINE

> Features

  • Do not need to change any moulds for different sizes of screw or anchor.
  • The continuous assembly mechanism works fast and steady.
  • Sorting device for unassembled screws or anchors
  • When the supply of screws or anchors is late, the machine will stop automatically.
  • After the feed screw or anchors, tracks are full of the machine will be automatic movement.
  • Easy to operate and eliminate malfunction, one staff could operate several machines.
  • Machine is accordance with CE security rules.

> Specification

MODEL SCREW DIA SCREW LENGTH ANCHOR DIA ANCHOR LENGTH N.W. SPEED
DLC-M5-6S 3.0-4.0mm 25-65mm M5-M6 25-65mm 1,230kgs 480-700pcs/min
DLC-M5-6 3.0-4.0mm 25-100mm M5-M6 25-100mm 1,230kgs 450-700pcs/min
DLC-M6-8 3.5-5.0mm 25-125mm M6-M8 25-125mm 1,480kgs 420-700pcs/min
DLC-M6-8L 3.5-5.0mm 35-160mm M6-M8 35-160mm 1,550kgs 300-700pcs/min
DLC-M8-10S 4.8-7.0mm 25-125mm M8-M10 25-125mm 1,480kgs 420-700pcs/min
DLC-M8-10 4.8-7.0mm 25-170mm M8-M10 25-170mm 1,550kgs 300-700pcs/min
DLC-M8-10L 4.8-7.0mm 25-210mm M8-M10 25-210mm 1,700kgs 200-600pcs/min
DLC-300 4.8-7.0mm 50-300mm M8-M10 50-300mm 1,800kgs 100-400pcs/min

* Motor Power :1/2 HP
* Machine Dimension :1950(L)x2100(W)x1900(H) mm
* Machine is PLC control and with Inverter.

DAH-LIAN MACHINE CO.,LTD.

Profession in manufacturing the machine for fastener production
