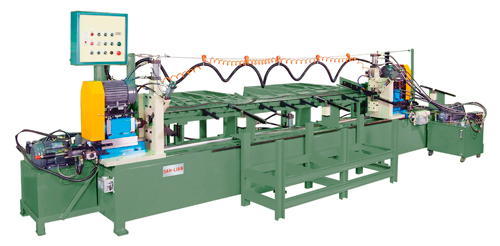

+ DOUBLE END CHAMFERING & MARKING MACHINE

> Specification

Model O.D Length SPEED Machine Dimension Net Weight
(mm) (PCS/MIN) (LxWxH/cm) (kg)
DL-C-08326 8-32mm 300-6000 6 750x110x170cm 4000kgs
DL-C-10302 10-30mm 160-2000 5-6 320x160x170cm 1600kgs
DL-C-12504 12-50mm 400-4000 5 550x190x170cm 2200kgs
DL-C-20501 20-50mm 220-1000 5 270x185x170cm 1800kgs
DL-C-30606 30-60mm 260-6000 5 760x185x170cm 4200kgs
DL-C-501004 50-100mm 400-4000 5 550x220x170cm 3200kgs

1. Machine is with material magazine
2. Machine is automatic feeding and unloading
3. Machine is hydraulic type
