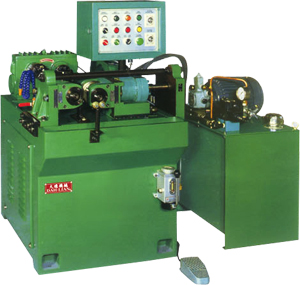

+ THREAD ROLLING MACHINE (CYLINDRI CAL/HYDRAULIC TYPE)

DL-310

> Specification

SPECIFICATION DL-310
Workpiece
(in-feed)
Max. Diameter 16 mm 1/16"
Min. Diameter 2 mm 5/8"
Max. length 40 mm
Pitch 0.4-1.75 mm
Workpiece
(thru-feed)
Max. Diameter 16 mm
Min. Diameter 2 mm
Max. length No limit
Pitch 0.4-1.75 mm
Dies Speed Range 54 rpm
Max. Outside Diameter 100 mm
Bore Diameter 50.5 mm
Width 30-40 mm
Center Distance of Dies-Spindle Max. 130 mm
Min. 90 mm
Max. Rolling Pressure 4 Tons
Main Spindle Motor 2 HP
Hydraulic Motor 2 HP
Coolant Pump 1/8 HP
Output (pc/min) 30-50 pc/min
Machine Weight (Approx) 500 kgs
Machine Dimension (LxWxH) 140 x 95 x 90 cm
* Specification subject to change without notice for improvement and modification.
