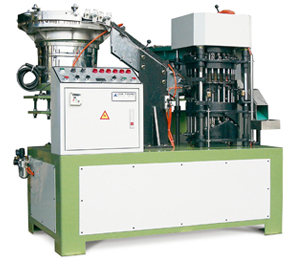

+ EPDM/PVC WASHER ASSEMBLY MACHINE

> Features

  • Available for EPDM, PVC, Rubber and Bonded Washer Assembly.
  • Easy to change toolings to assemble different sizes of screws or washer.
  • The continuous assembly mechanism works fast and steady.
  • 100% Sorting device for unassembled screws or washers.
  • The machine will stop automatically when the screws and washers feeding is too late, then restart running automatically when the tracks are full of screws and washers.
  • Almost no machine parts wear out after long term operation. Save time and money.

> Specification

MODEL SCREW DIAMETER
(mm)
SCREW LENGTH
(mm)
SPEED
(pcs/min)
MACHINE DIMENSION
(L X W X H/mm)
NET WEIGHT
(kg)
DLB-85 4.8/5.5/6.3 16-85 350-600 1905x1600x1620 1200
DLB-125 4.8/5.5/6.3 16-125 250-450 2000x1600x1670 1500

* Power: 1/2 HP
* PLC Control
* Inverter to change machine speed

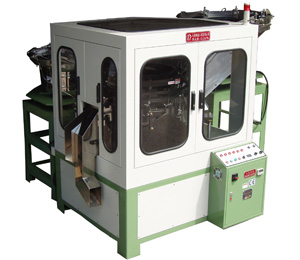

> Features

  • Available for EPDM, PVC, Rubber & Bonded/BAZ Washer Assembly.
  • Easy to change toolings to assembly different sizes of screws or washer.
  • The continuous assembly mechanism works fast and steady.
  • 100% Sorting device for unassembled screws or washers.
  • This assembling type is able to assemble screws with wing and bent screws cause of heating treatment.
  • The machine will stop automatically when the screws and washers feeding is too late, then restart the machine automatically when the tracks are full of screws and washers.
  • Almost no machine parts wear out after long term operation. Save time and money.

> Specification

MODEL SCREW DIAMETER
(mm)
SCREW LENGTH
(mm)
SPEED
(pcs/min)
MACHINE DIMENSION
(L X W X H/mm)
NET WEIGHT
(kg)
DLX-250 4.0~7.0 40-250 150-500 2490x2370x1900 1800
DLX-300 4.0~7.0 40-300 100-400 2700x2700x2050 2100
Specification: 1. Motor: 1HP
2. PLC control
3. Machine dimension: 2100x2100x1900mm
4. Machine weight: 1850kgs
Features: 1. Suitable for long
2. Both rubber and bonded EPDM washer available
3. Sorting device for unassembled screw or washer
4. Machine running is very steady.

* Power: 1 HP
* PLC Control
* Inverter to change machine speed
