+ GAS PINS COLLATION MACHINE

> Features

  • Machine is with PLC Control.
  • Machine is with MMI. The operator can see the mechanical function and error place.

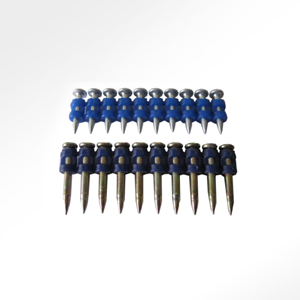

  • Both sides have plastic strips feeding mechanism. Every reciprocation motion assemble 6 plastic strips (60 pieces pin)
  • Machine is with sensors to detect every process. It’s for easier operation, eliminate malfunction and protect the machine.

> Specification

Model DRIVE PINS (mm) PLASTIC STRIP LENGTH SPEED
DLO-50 Ø2.5-3.1x15-54 69mm 400-450 pcs/min
DLO-62 Ø3.0-3.6x15-62 68.5mm 400-450 pcs/min
DLO-75 Ø3.5-3.9x15-75 96mm 250-450 pcs/min

1. Power: Air 5~7 kgf/cm2
2. Machine Dimensions :230x180x170cm
3. Machine Weight :600~850KGS

DAH-LIAN MACHINE CO.,LTD.

Profession in manufacturing the machine for fastener production
