+ THREAD ROLLING MACHINE (CYLINDRI CAL/HYDRAULIC TYPE)

DL-15A / DL-30A

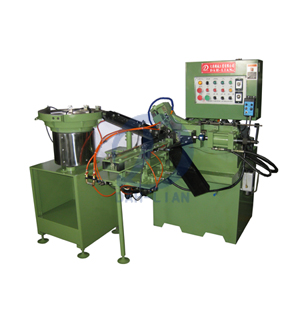

DL-30A with auto feeding

> Specification

  MODEL DL-15A DL-30A
Thread Work Range Max. diameter 30 60
Min. diameter 8 15
Max. lenght (infeeed) 40 50
Max. lenght (thru feed) Free Free
Pitch 0.5-2.5mm 40T-11T 0.75-3.0mm 32T-8T
Motor Main. Motor 1.5kw 3.75kw
Hydraulic motor 0.75kw 1.5kw
Coolant motor 0.1kw 0.1kw
Roller Dies Max.O.D. 75 125
Max.I.D. 25.4 40
Thickness 20,30,40 25,30,50
Spindle distance Max. 100 200
Min. 40 75
Pcs/min Pcs/min 10-30 6-30
Floor Space L x W x H 770 x 1050 x 1150 1050 x 1300 x 1300
Weight N.W/G.W 520kgs / 570kgs 1200kgs / 1260kgs
