+ OPEN DIE HEADING MACHINE

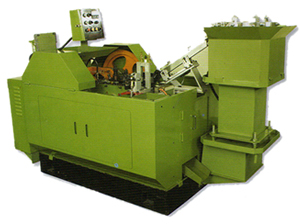

A style

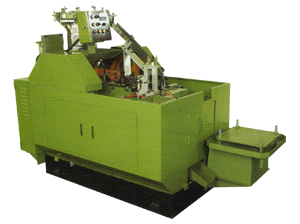

B style

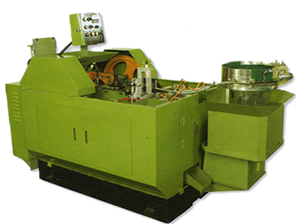

C style

> Specification

MODEL ODH5X75 ODH6X160 ODH8X200 ODH10X300 ODH15X300
Max.Wire Diameter 3-5 4~6 6~8 6~10 8~12(15)
Max.Blank Length 25~75 mm 25~200 mm 25~250 mm 25~350 mm 25~350 mm
Machine RPM/Output 50~90 pcs/min 30~55 pcs/min 20~50 pcs/min 15~40 pcs/min 15~40 pcs/min
Feeding Mechanism Feedling Vibrator(Single Direction, A,B or C type depends on actual product.)
Auto Feeding Length 25~75mm 25~150mm 25~150mm 25~200mm 25~200mm
Main Drive Motor 3HP 5HP 7.5HP 20HP 50HP
Machine Dimension(mm) 1700X1050X1000 2600X1330X1800 3200X1510X1800 4450X1780X2000 7300X2440X2600
Machine Weight 2100KGS 4000KGS 6800KGS 13000KGS 18000KGS
