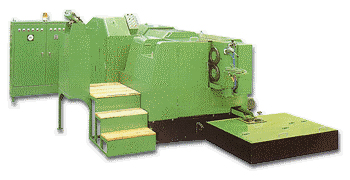

+ BOLT FORMER/PARTS FORMER

> Specification

3 STATION BOLT FORMER

SPECIFICATION / MODEL BF10B-3S BF13B-3S BF13B-3SL BF17B-3S BF17B-3SL BF19B-3S BF19B-3SXL BF19B-3SUL BF24B-3S BF30B-3S BF50B-3S
FORGING STATION 3 3 3 3 3 3 3 3 3 3 3
CUT-OFF DIA(MAX) (MM) 8 10 10 12 12 15 15 15 18 23 44
CUT-OFF LENGTH(MAX) (MM) 70 94 130 105 180 140 240 350 185 270 380
KICK-OUT LENGTH(MAX) (MM) 55 70 115 80 175 105 230 210 175 220 360
PUNCH KICK-OUT LENGTH(MAX) (MM) 12 16 30 20 35 25 40 60 30 35 60
CUT-OFF QUILL(DIAxLENGTH) (MM) 28X46 35X56 38X79 40X66 40X80 46X80 46X80 65X110 60X100 75X120 138X165
MAIN DIE(DIAxLENGTH) (MM) 50X65 60X85 70X135 70X95 80X185 80X123 93X240 93X350 100X190 125X240 230X390
CENTER DISTANCE BETWEEN DIES (MM) 60 87 87 93 93 114 114 114 126 138 240
PUNCH HOLE(DIAxLENGTH) (MM) 40X77 45X87 45X111 50X102 50X130 60X120 60X200 65X192 75X185 90X190 146X240
RAM STROKE (MM) 120 140 200 160 250 200 340 460 280 360 520
FORGING POWER (MM) 20 40 40 60 65 80 90 100 140 200 520
PRODUCTS SIZE 1/4m(M6) 5/16m(M8) 5/16m(M8) 3/8m(M10) 3/8m(M10) 1/2m(M12) 1/2m(M12) 1/2m(M12) 5/8m(M16) 3/4m(M20) 13/8m(M33)
MAX LENGTH 50mm 65mm 100mm 75mm 150mm 100mm 200mm 300mm 150mm 200mm 300mm
MIN LENGTH HEX 12mm 14mm 20mm 16mm 30mm 20mm 50mm 100mm 25mm 40mm 100mm
MIN LENGTH SOCKET 16mm 20mm 25mm 20mm 40mm 25mm 50mm 100mm 35mm 60mm 100mm
OUTPUT PCS/MINUTE(MAX) 250 210 180 180 150 150 115 70 100 80 45
MAIN MOTOR (HP) 10 15 20 20 30 40 50 75 75 100 150
LUBRICATING MOTOR (HP) 1 1 1 1 1 1 2 2 2 2x2 2x2
COOLING MOTOR (HP) 1/2 1/2 1/2 1/2 1/2 1/2 1 1 1 1 1
LUBRICANT (L) 120 180 180 200 200 300 325 500 400 400 600
COOLANT (L) 180 220 220 300 300 400 450 600 500 500 600
APPROX.WT (KG) 6000 9000 13000 13000 18000 20000 35000 43000 43000 58000 180000
FLOOR AREA REQUIRED(LENGTHxWIDTH) (M) 4.5X3.5 5X4 6.5X4 6.3X4.5 7X4.5 7.5X5 9.5X5 11x6 8.5x5.5 10x6 17x9

4 STATION BOLT FORMER

SPECIFICATION / MODEL BF10B-4S BF13B-4S BF17B-4SL BF19B-4S BF19B-3SUL BF19B-4SXL BF24B-4S BF30B-4S BF30B-4SXL BF36B-4S
FORGING STATION 4 4 4 4 4 4 4 4 4 4
CUT-OFF DIA(MAX) (MM) 10 12 12 15 15 15 18 23 23 29
CUT-OFF LENGTH(MAX) (MM) 94 105 180 140 240 400 185 270 430 320
KICK-OUT LENGTH(MAX) (MM) 70 80 175 105 230 340 175 220 400 280
PUNCH KICK-OUT LENGTH(MAX) (MM) 16 20 35 25 40 60 30 35 20,40,60 60
CUT-OFF QUILL(DIAxLENGTH) (MM) 28x46 35x56 40x80 46x80 46x80 65X110 60X100 75X120 75X120 90X140
MAIN DIE(DIAxLENGTH) (MM) 50x85 70x95 80x185 80x123 93x240 93X400 100X175 125X240 125X430 160X294
CENTER DISTANCE BETWEEN DIES (MM) 60 87 93 114 114 114 126 138 138 174
PUNCH HOLE(DIAxLENGTH) (MM) 40x77 45x87 50x130 60x120 60x200 65X192 75X165 90X190 95X250 105X232
RAM STROKE (MM) 140 160 250 200 340 500 280 360 560 440
FORGING POWER (MM) 40 60 85 100 120 120 180 220 320 320
PRODUCTS SIZE 1/4m(M6) 5/16m(M8) 3/8m(M10) 1/2m(M12) 1/2m(M12) 1/2m(M12) 5/8m(M16) 3/4m(M20) 3/4m(M20) 1m(M24)
MAX LENGTH 65mm 75mm 150mm 100mm 200mm 330mm 150mm 200mm 380mm 250mm
MIN LENGTH HEX 12mm 14mm 30mm 20mm 50mm 100mm 25mm 40mm 100mm 60mm
MIN LENGTH SOCKET 16mm 20mm 40mm 25mm 50mm 100mm 35mm 60mm 100mm 60mm
OUTPUT PCS/MINUTE(MAX) 210 180 150 120 90 70 100 80 60 60
MAIN MOTOR (HP) 15 20 40 50 75 75 75 100 125 125
LUBRICATING MOTOR (HP) 1 1 1 1 2 2 2 2 2 2x2
COOLING MOTOR (HP) 1/2 1/2 1/2 1/2 1 1 1 1 1 1
LUBRICANT (L) 180 200 200 300 350 500 500 500 600 500
COOLANT (L) 220 300 300 400 450 600 600 600 600 600
APPROX.WT (KG) 9000 13000 20000 25000 37000 48000 45000 66000 75000 110000
FLOOR AREA REQUIRED(LENGTHxWIDTH) (M) 5x4 6.3x4.5 7x5 7.5x5.5 9.5x6 12x6.5 8.5x6 10x6.5 13x7 15x8
