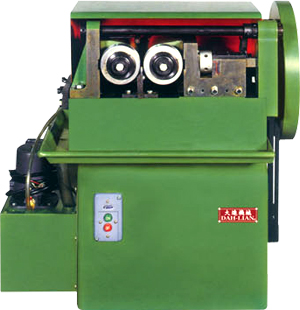

+ THREAD ROLLING MACHINE (CYLINDRI CAL/HYDRAULIC TYPE)

DL-3T

> Specification

SPECIFICATION DL-3T
Workpiece Range Dia. 2-10 mm 3/8"
Pitch Range 0.5P-1.5P 40-16 TPI
Max. Length Thread 28 mm 1-1/8"
Rolling Die Speed 32 rpm
Max. Die Diameter 100 mm 4"
Bore Diameter 50.5 mm 2"
Width 30 mm 1-3/16"
Center Distance of Dies-Spindle Max. 115 mm 4-1/2"
Min. 94 mm 3-5/8"
Machine Motor 1 HP
Cooliant Pump 1/8 HP
Net Weight (approx) 300 kgs
Machine Dimension 80 x 50 x 75 cm
* Specification subject to change without notice for improvement and modification.
