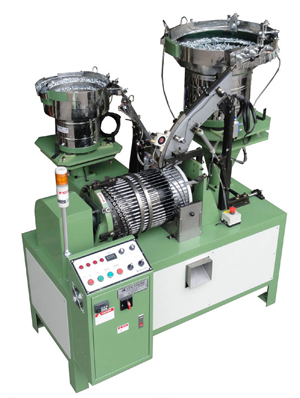

+ DRIVE PIN ASSEMBLY MACHINE
> Specification
| Model | Nail Dia | Nail Length | Washer Dia | Speed | Motor | Machine Dimension | Net Weight |
|---|---|---|---|---|---|---|---|
| (pcs/min) | (hp) | (LxWxH/mm) | (kg) | ||||
| DLE-1 | 3.0-3.3mm | 15-75mm | 9.4mm | 250-500 | 1 | 1320x1150x1400 | 750 |
* Control: PLC with speed inverter.
