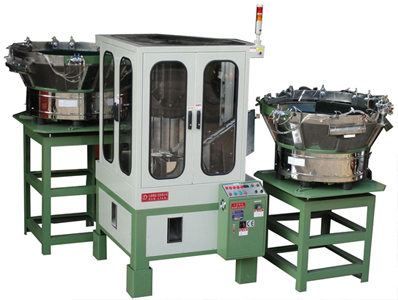

+ INSULATION PLUG ASSEMBLY MACHINE
> Features
- Special Design let the machine run fast and steady.
- Sorting device for unassembled parts.

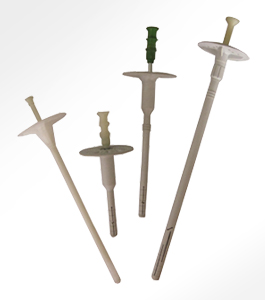

- Able to assemble curved long pins and plastic insulations.
- Easy to operate and eliminate malfunction.
> Specification
| Model | Pin Dia | Plastic Dia | Length | Speed | Machine Dimension | Net Weight |
|---|---|---|---|---|---|---|
| (pcs/min) | (LxWxH/mm) | (kg) | ||||
| DLT-5 | 5mm | 8mm | 100-320mm | 40-80 | 2200x2250x1760 | 2000 |
| DLT-10 | 4.35-7.5mm | 11.8mm | 100-320mm | 20-60 | 2300x2350x1760 | 2200 |
1. Power: 1 HP
2. Machine is with PLC Control
