+ HEADING MACHINE

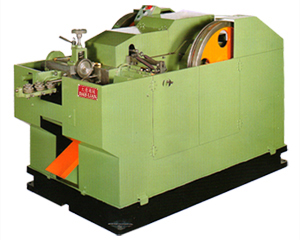

DL-1.5T

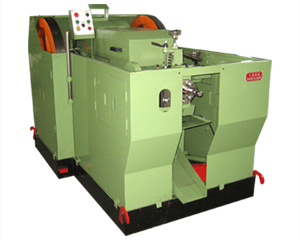

DL-1.0TX

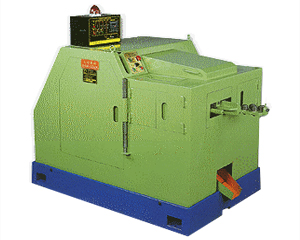

DL-2.5T

> Specification

Model Blank Diameter
Max. 		Blank Length
Max. 		Stroke Blanks Per
Min. 		Die Dia. Cut-off Die Dia. Punch Die.
(1st) 		Punch Die.
(2nd) 		Motor Overall Dimension Weight
Approx.
HP Oil Pump L W H
DL-1.0T 2-3mm 30mm 56mm 180-200 20mm 15mm 24mm 20mm 2 1/8HP 160mm 103mm 138mm 1420KG
DL-1.5T 3-5mm 32mm 60mm 180-200 34.5mm 19mm 31mm 31mm 2 1/4HP 213mm 118mm 143mm 1420KG
DL-1.5T 3-5mm 52mm 80mm 130-180 34.5mm 19mm 31mm 31mm 2 1/4HP 213mm 118mm 143mm 1420KG
DL-2.0T 3-6mm 76mm 120mm 70-100 42.8mm 25mm 31mm 31mm 3 1/4HP 260mm 125mm 120mm 1800KG
DL-2.0T 6mm 102mm 146mm 66-84-90 45.0mm 25mm 36mm 36mm 5 1/4HP 3000mm 1310mm 1270mm 2800KG
DL-2.0T 6mm 165mm 214mm 46-58-63 60.0mm 25mm 38mm 38mm 5 1/4HP 3400mm 1320mm 1270mm 3200KG
DL-2.0T 6mm 200mm 254mm 30-40-50 60.0mm 25mm 38mm 38mm 5 1/4HP 3320mm 1270mm 1450mm 4000KG
DL-2.5T 8mm 102mm 160mm 66-84-90 60mm 28mm 38mm 38mm 7-1/2 1/4HP 3490mm 1510mm 1350mm 4000KG
DL-2.5T 8mm 152mm 220mm 50-65-70 60mm 28mm 38mm 38mm 7-1/2 1/4HP 4050mm 1550mm 1380mm 4400KG
DL-3.0T 10mm 76mm 140mm 70-80 80mm 35mm 50mm 50mm 15 1/4HP 3880mm 1720mm 1450mm 6600KG
DL-3.0T 10mm 152mm 230mm 52-60 80mm 35mm 50mm 50mm 15 1/4HP 4450mm 1740mm 1510mm 7000KG
DL-3.0T 10mm 200mm 280mm 42-48 80mm 35mm 54mm 50mm 15 1/4HP 4930mm 1800mm 1550mm 7500KG
DL-4.0T 13mm 102mm 166mm 60-70 88mm 40mm 53mm 53mm 25 1/2HP 4360mm 1820mm 1580mm 9500KG
DL-4.0T 13mm 200mm 290mm 38-44 98mm 48mm 68mm 68mm 25 1/2HP 5670mm 1900mm 1700mm 11000KG
DL-6.0T 19mm 200mm 290mm 40 135mm 65mm 83mm 78mm 50 1/2HP 7300mm 2440mm 2120mm 18000KG
DL-7.0T 22mm 250mm 360mm 40 140mm 75mm 95mm 95mm 60 1/2HP 8300mm 2500mm 2200mm 29000KG
DL-8.0T 25mm 330mm 444mm 30 168mm 98mm 108mm 95mm 60 1/2HP 8900mm 2750mm 2350mm 33800KG
