+ NUT FORMER
> Specification

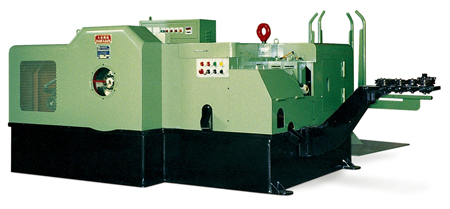

Automatic 5 Stations Nut Cold Former
| Specification / Model |
NF 8B-5S | NF 11B-5S | NF 14B-5S | NF 17B-5S | NF 19B-5S | NF 21B-5S | NF 24B-5S |
|---|---|---|---|---|---|---|---|
| Forging Stations | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Cut-Off-Dia(MAX)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 |
| Cut-Off-Length(MAX)(mm) | 5.5 | 7 | 15 | 18 | 20 | 25 | 30 |
| Dies Pitch(mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 |
| Ram Stroke(mm) | 40 | 50 | 80 | 90 | 100 | 100 | 110 |
| Forging Power(TON) | 30 | 55 | 85 | 110 | 130 | 150 | 240 |
| Products NUT(IDN) / (ANSI) | M3-M5 #4-#9 |
M3-M6 #4-5/16 |
M6-M10 1/4-3/8 |
M8-M10 5/16-3/8 |
M8-M12 3/8-1/2 |
M10-M14 3/8-9/16 |
M12-M16 7/16-5/8 |
| Production Rate(pcs/min) | 300-400 | 320-400 | 200-260 | 170-200 | 150-190 | 140-160 | 120-140 |
| Main Motor(HP) | 10 | 15 | 20 | 20 | 30 | 40 | 50 |
| Lubrication Motro | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 |
| Lubricant(l.) | 650 | 750 | 850 | 900 | 1100 | 1250 | 1350 |
| Approx. Weight(TON) | 3.7 | 4 | 7.5 | 8 | 12 | 15 | 23 |
| Machine Dimensions(m) L*W*H | 1.8*1.5*1.1 | 2.2*1.5*1.1 | 2.9*2*1.3 | 3.1*2.1*1.4 | 3.3*2.1*1.5 | 3.6*2.4*1.7 | 4.2*2.6*1.8 |
| Specification / Model | NF 27B-5S | NF 33B-5S | NF 36B-5S | NF 41B-5S | NF 45B-5S | NF 50B-5S |
|---|---|---|---|---|---|---|
| Forging Stations | 5 | 5 | 5 | 5 | 5 | 5 |
| Cut-Off-Dia(MAX)(mm) | 26 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length(MAX)(mm) | 30 | 30 | 30 | 45 | 50 | 56 |
| Dies Pitch(mm) | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke(mm) | 120 | 146 | 160 | 210 | 210 | 210 |
| Forging Power(TON) | 300 | 400 | 520 | 620 | 720 | 810 |
| Products NUT(IDN) / (ANSI) | M16-M18 7/16-7/8 |
M16-M22 5/8-7/8 |
M20-M24 5/8-1 |
M22-M27 7/8-1 |
M24-M30 7/8-1&1/8 |
M27-M32 1-1&1/4 |
| Production Rate(pcs/min) | 100-130 | 85-105 | 75-90 | 65-75 | 50-60 | 45-55 |
| Main Motor(HP) | 50 | 100 | 150 | 200 | 300 | 400 |
| Lubrication Motro | 1*2 | 2*1 1*1 |
2*1 1*1 |
3*1 1*1 |
3*1 1*1 |
3*1 1*1 |
| Lubricant(l.) | 1400 | 1500 | 1800 | 2200 | 2900 | 2900 |
| Approx. Weight(TON) | 26 | 39 | 45 | 65 | 140 | 150 |
| Machine Dimensions(m) L*W*H | 4.6*2.8*2 | 4.9*2.8*2 | 5.5*3.2*2.3 | 6.5*3.5*2.5 | 8.9*3.5*2.7 | 8.9*3.5*2.7 |
* No responsibility is taken for this data, which may be altered as improvements in manufacture dictate.
Automatic 5 Stations Long Stroke Cold Former
| Specification / Model | NF 8B-5SL | NF 11B-5SL | NF 14B-5SL | NF 17B-5SL | NF 19B-5SL | NF 21B-5SL | NF 24B-5SL |
|---|---|---|---|---|---|---|---|
| Forging Stations | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Cut-Off-Dia(MAX)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 |
| Cut-Off-Length(MAX)(mm) | 8 | 12 | 20 | 22 | 32 | 30 | 40 |
| Dies Pitch(mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 |
| Ram Stroke(mm) | 50 | 60 | 120 | 130 | 160 | 180 | 200 |
| Forging Power(TON) | 33 | 60 | 90 | 120 | 140 | 160 | 255 |
| Products NUT(IDN) / (ANSI) | M3-M5 #4-#9 |
M3-M6 #4-5/16 |
M6-M10 1/4-3/8 |
M8-M10 5/16-3/8 |
M8-M12 3/8-1/2 |
M10-M14 3/8-9/16 |
M12-M16 7/16-5/8 |
| Production Rate(pcs/min) | 200-230 | 160-200 | 120-160 | 120-140 | 100-120 | 80-100 | 75-90 |
| Main Motor(HP) | 10 | 15 | 30 | 30 | 40 | 50 | 75 |
| Lubrication Motro | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 |
| Lubricant(l.) | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1500 |
| Approx. Weight(TON) | 3.9 | 4.5 | 8 | 11 | 15 | 23 | 26 |
| Machine Dimensions(m) L*W*H | 2*1.5*1.1 | 2.2*1.6*1.1 | 3.3*2.1*1.4 | 3.7*2.2*1.5 | 4.2*2.2*1.6 | 4.6*2.6*1.7 | 5*3*1.7 |
| Specification / Model | NF 27B-5SL | NF 33B-5SL | NF 36B-5SL | NF 41B-5SL | NF 45B-5SL | NF 50B-5SL |
|---|---|---|---|---|---|---|
| Forging Stations | 5 | 5 | 5 | 5 | 5 | 5 |
| Cut-Off-Dia(MAX)(mm) | 26 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length(MAX)(mm) | 45 | 36 | 60 | 70 | 80 | 80 |
| Dies Pitch(mm) | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke(mm) | 220 | 160 | 200 | 240 | 270 | 270 |
| Forging Power(TON) | 320 | 420 | 550 | 640 | 740 | 820 |
| Products NUT(IDN) / (ANSI) | M16-M18 7/16-7/8 |
M16-M22 5/8-7/8 |
M20-M24 5/8-1 |
M22-M27 7/8-1 |
M24-M30 7/8-1&1/8 |
M27-M32 1-1&1/4 |
| Production Rate(pcs/min) | 65-85 | 60-80 | 55-70 | 45-60 | 40-50 | 40-50 |
| Main Motor(HP) | 75 | 100 | 150 | 200 | 300 | 400 |
| Lubrication Motro | 1*2 | 2*1 1*1 |
2*1 1*1 |
3*1 1*1 |
3*1 1*1 |
3*1 1*1 |
| Lubricant(l.) | 1600 | 1700 | 2000 | 2400 | 3000 | 3000 |
| Approx. Weight(TON) | 35 | 42 | 55 | 80 | 140 | 150 |
| Machine Dimensions(m) L*W*H | 5.5*3*2 | 6.1*3*1.8 | 6.5*3.2*2.4 | 7*3.5*2.5 | 8.9*3.5*2.7 | 8.9*3.5*2.7 |
* No responsibility is taken for this data, which may be altered as improvements in manufacture dictate.
Automatic 6 Stations Cold Former
| Specification / Model | NF 8B-6S | NF 11B-6S | NF 14B-6S | NF 17B-6S | NF 19B-6S | NF 21B-6S | NF 24B-6S |
|---|---|---|---|---|---|---|---|
| Forging Stations | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Cut-Off-Dia(MAX)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 |
| Cut-Off-Length(MAX)(mm) | 5.5 | 7 | 15 | 18 | 20 | 25 | 30 |
| Dies Pitch(mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 |
| Ram Stroke(mm) | 40 | 50 | 80 | 90 | 100 | 100 | 110 |
| Forging Power(TON) | 35 | 60 | 90 | 120 | 140 | 160 | 260 |
| Products NUT(IDN) / (ANSI) | M3-M5 #4-#9 |
M3-M6 #4-5/16 |
M6-M10 1/4-3/8 |
M8-M10 5/16-3/8 |
M8-M12 3/8-1/2 |
M10-M14 3/8-9/16 |
M12-M16 7/16-5/8 |
| Production Rate(pcs/min) | 300-360 | 260-360 | 200-230 | 160-180 | 120-160 | 100-140 | 100-120 |
| Main Motor(HP) | 10 | 15 | 20 | 20 | 30 | 40 | 50 |
| Lubrication Motro | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 |
| Lubricant(l.) | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1500 |
| Approx. Weight(TON) | 3.8 | 5 | 8 | 10 | 14 | 17 | 25 |
| Machine Dimensions(m) L*W*H | 1.9*1.6*1 | 2.3*1.8*1.1 | 2.9*2.1*1.3 | 3.2*2.2*1.4 | 3.5*2.2*1.5 | 3.9*2.5*1.7 | 4.3*2.7*1.7 |
| Specification / Model | NF 27B-6S | NF 33B-6S | NF 36B-6S | NF 41B-6S | NF 45B-6S | NF 50B-6S |
|---|---|---|---|---|---|---|
| Forging Stations | 6 | 6 | 6 | 6 | 6 | 6 |
| Cut-Off-Dia(MAX)(mm) | 26 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length(MAX)(mm) | 30 | 30 | 30 | 45 | 50 | 56 |
| Dies Pitch(mm) | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke(mm) | 120 | 146 | 160 | 210 | 210 | 210 |
| Forging Power(TON) | 330 | 420 | 560 | 650 | 750 | 840 |
| Products NUT(IDN) / (ANSI) | M16-M18 7/16-7/8 |
M16-M22 5/8-7/8 |
M20-M24 5/8-1 |
M22-M27 7/8-1 |
M24-M30 7/8-1&1/8 |
M27-M32 1-1&1/4 |
| Production Rate(pcs/min) | 90-100 | 80-100 | 70-90 | 65-75 | 50-60 | 45-55 |
| Main Motor(HP) | 50 | 100 | 150 | 200 | 300 | 400 |
| Lubrication Motro | 1*2 | 2*1 1*1 |
2*1 1*1 |
3*1 1*1 |
3*1 1*1 |
3*1 1*1 |
| Lubricant(l.) | 1600 | 1700 | 2000 | 2400 | 3000 | 3000 |
| Approx. Weight(TON) | 29 | 44 | 50 | 70 | 140 | 150 |
| Machine Dimensions(m) L*W*H | 5*2.7*2 | 5.5*3*2 | 6*3*2.2 | 7.7*3*2.5 | 9*3.5*2.7 | 9/3.5*2.7 |
* No responsibility is taken for this data, which may be altered as improvements in manufacture dictate.
Automatic 6 Stations Long Stroke Cold Former
| Specification / Model | NF 8B-6SL | NF 11B-6SL | NF 14B-6SL | NF 17B-6SL | NF 19B-6SL | NF 21B-6SL | NF 24B-6SL |
|---|---|---|---|---|---|---|---|
| Forging Stations | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Cut-Off-Dia(MAX)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 |
| Cut-Off-Length(MAX)(mm) | 8 | 12 | 20 | 22 | 32 | 30 | 40 |
| Dies Pitch(mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 |
| Ram Stroke(mm) | 50 | 60 | 120 | 130 | 160 | 180 | 200 |
| Forging Power(TON) | 35 | 63 | 95 | 125 | 150 | 170 | 275 |
| Products NUT(IDN) / (ANSI) | M3-M5 #4-#9 |
M3-M6 #4-5/16 |
M6-M10 1/4-3/8 |
M8-M10 5/16-3/8 |
M8-M12 3/8-1/2 |
M10-M14 3/8-9/16 |
M12-M16 7/16-5/8 |
| Production Rate(pcs/min) | 200-230 | 160-180 | 120-140 | 100-120 | 90-120 | 80-100 | 75-90 |
| Main Motor(HP) | 10 | 15 | 30 | 40 | 50 | 50 | 75 |
| Lubrication Motro | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 |
| Lubricant(l.) | 750 | 850 | 950 | 1100 | 1300 | 1500 | 1650 |
| Approx. Weight(TON) | 4 | 5.5 | 8.5 | 10.5 | 16 | 24 | 30 |
| Machine Dimensions(m) L*W*H | 2.1*1.6*1 | 2.7*1.7*1.1 | 3.3*2.1*1.4 | 3.5*2.3*1.5 | 4.2*2.3*1.7 | 4.5*2.7*1.7 | 5.3*2.9*1.9 |
| Specification / Model | NF 27B-6SL | NF 33B-6SL | NF 36B-6SL | NF 41B-6SL | NF 45B-6SL | NF 50B-6SL |
|---|---|---|---|---|---|---|
| Forging Stations | 6 | 6 | 6 | 6 | 6 | 6 |
| Cut-Off-Dia(MAX)(mm) | 26 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length(MAX)(mm) | 45 | 60 | 70 | 80 | 80 | 80 |
| Dies Pitch(mm) | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke(mm) | 220 | 240 | 280 | 280 | 360 | 360 |
| Forging Power(TON) | 350 | 450 | 600 | 680 | 780 | 880 |
| Products NUT(IDN) / (ANSI) | M16-M18 7/16-7/8 |
M16-M22 5/8-7/8 |
M20-M24 5/8-1 |
M22-M27 7/8-1 |
M24-M30 7/8-1&1/8 |
M27-M32 1-1&1/4 |
| Production Rate(pcs/min) | 65-85 | 60-80 | 55-70 | 45-60 | 40-50 | 40-50 |
| Main Motor(HP) | 100 | 150 | 150 | 200 | 300 | 400 |
| Lubrication Motro | 1*2 | 2*1 1*1 |
2*1 1*1 |
3*1 1*1 |
3*1 1*1 |
3*1 1*1 |
| Lubricant(l.) | 1750 | 1900 | 2100 | 2500 | 3000 | 3000 |
| Approx. Weight(TON) | 40 | 48 | 60 | 80 | 140 | 150 |
| Machine Dimensions(m) L*W*H | 5.5*2.9*2.1 | 6.2*3.2*2.2 | 7*3.1*2.3 | 7.8*3*2.6 | 9*3.5*2.7 | 9*3.5*2.7 |
* No responsibility is taken for this data, which may be altered as improvements in manufacture dictate.
Automatic 6 Stations Punch Kick Out Cold Former
| Specification / Model | NF 8B-6SP | NF 11B-6SP | NF 14B-6SP | NF 17B-6SP | NF 19B-6SP | NF 21B-6SP | NF 24B-6SP |
|---|---|---|---|---|---|---|---|
| Forging Stations | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Cut-Off-Dia(MAX)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 |
| Cut-Off-Length(MAX)(mm) | 8 | 12 | 20 | 22 | 32 | 35 | 40 |
| P.K.O Length(MAX) | 9 | 13 | 18 | 19 | 20.5 | 21 | 22 |
| Dies Pitch(mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 |
| Ram Stroke(mm) | 50 | 60 | 120 | 130 | 160 | 180 | 200 |
| Forging Power(TON) | 35 | 65 | 100 | 130 | 160 | 190 | 280 |
| Products NUT(IDN) / (ANSI) | M3-M5 #4-#9 |
M3-M6 #4-5/16 |
M6-M10 1/4-3/8 |
M8-M10 5/16-3/8 |
M8-M12 3/8-1/2 |
M10-M14 3/8-9/16 |
M12-M16 7/16-5/8 |
| Production Rate(pcs/min) | 200-300 | 160-180 | 120-140 | 100-120 | 90-120 | 80-100 | 75-90 |
| Main Motor(HP) | 10 | 15 | 30 | 40 | 50 | 50 | 75 |
| Lubrication Motro | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 |
| Lubricant(l.) | 750 | 850 | 950 | 1100 | 1300 | 1500 | 1650 |
| Approx. Weight(TON) | 4 | 5.3 | 8.8 | 11 | 17 | 25 | 30 |
| Machine Dimensions(m) L*W*H | 2.1*1.6*1 | 2.7*1.7*1.1 | 3.3*2.1*1.4 | 3.5*2.3*1.5 | 4.2*2.3*1.7 | 4.5*2.7*1.7 | 5.3*2.9*1.9 |
| Specification / Model | NF 27B-6SP | NF 33B-6SP | NF 36B-6SP | NF 41B-6SP | NF 45B-6SP | NF 50B-6SP |
|---|---|---|---|---|---|---|
| Forging Stations | 6 | 6 | 6 | 6 | 6 | 6 |
| Cut-Off-Dia(MAX)(mm) | 26 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length(MAX)(mm) | 45 | 60 | 70 | 80 | 80 | 80 |
| P.K.O Length(MAX) | 27 | 33 | 35 | 40 | 40 | 40 |
| Dies Pitch(mm) | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke(mm) | 220 | 240 | 280 | 280 | 360 | 360 |
| Forging Power(TON) | 370 | 450 | 630 | 700 | 800 | 900 |
| Products NUT(IDN) / (ANSI) | M16-M18 7/16-7/8 |
M16-M22 5/8-7/8 |
M20-M247 5/8-1 |
M22-M27 7/8-1 |
M24-M30 7/8-1&1/8 |
M27-M32 1-1&1/4 |
| Production Rate(pcs/min) | 65-85 | 60-80 | 55-70 | 45-60 | 40-50 | 40-50 |
| Main Motor(HP) | 100 | 150 | 150 | 200 | 300 | 400 |
| Lubrication Motro | 1*2 | 2*1 1*1 |
2*1 1*1 |
3*1 1*1 |
3*1 1*1 |
3*1 1*1 |
| Lubricant(l.) | 1750 | 1900 | 2100 | 2500 | 3000 | 3000 |
| Approx. Weight(TON) | 42 | 50 | 60 | 80 | 140 | 150 |
| Machine Dimensions(m) L*W*H | 5.5*2.9*2.1 | 6.2*3.2*2.2 | 7*3.1*2.3 | 7.8*3*2.6 | 9*3.5*2.7 | 9*3.5*2.7 |
* No responsibility is taken for this data, which may be altered as improvements in manufacture dictate.
Automatic 7 Stations Long Stroke Cold Former
| Specification / Model | NF 8B-7SL | NF 11B-7SL | NF 14B-7SL | NF 17B-7SL | NF 19B-7SL | NF 21B-7SL | NF 24B-7SL |
|---|---|---|---|---|---|---|---|
| Forging Stations | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Cut-Off-Dia(MAX)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 |
| Cut-Off-Length(MAX)(mm) | 8 | 12 | 20 | 22 | 32 | 35 | 40 |
| Dies Pitch(mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 |
| Ram Stroke(mm) | 50 | 60 | 120 | 130 | 160 | 180 | 200 |
| Forging Power(TON) | 35 | 65 | 100 | 130 | 160 | 190 | 280 |
| Products NUT(IDN) / (ANSI) | M3-M5 #4-#9 |
M3-M6 #4-5/16 |
M6-M10 1/4-3/8 |
M8-M10 5/16-3/8 |
M8-M12 3/8-1/2 |
M10-M14 3/8-9/16 |
M12-M16 7/16-5/8 |
| Production Rate(pcs/min) | 170-190 | 150-170 | 130-150 | 100-120 | 80-100 | 80-90 | 70-80 |
| Main Motor(HP) | 15 | 20 | 40 | 40 | 50 | 50 | 100 |
| Lubrication Motro | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 |
| Lubricant(l.) | 750 | 850 | 1000 | 1150 | 1350 | 1600 | 1800 |
| Approx. Weight(TON) | 4 | 5.2 | 8.5 | 10.5 | 16 | 24 | 30 |
| Machine Dimensions(m) L*W*H | 2.1*1.7*1.1 | 2.7*1.8*1.1 | 3.3*2.2*1.4 | 3.7*2.4*1.5 | 4.2*2.4*1.8 | 4.6*2.8*1.8 | 5.3*3*2 |
| Specification / Model | NF 27B-7SL | NF 33B-7SL | NF 36B-7SL | NF 41B-7SL | NF 45B-7SL | NF 50B-7SL |
|---|---|---|---|---|---|---|
| Forging Stations | 7 | 7 | 7 | 7 | 7 | 7 |
| Cut-Off-Dia(MAX)(mm) | 26 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length(MAX)(mm) | 45 | 60 | 70 | 80 | 80 | 80 |
| Dies Pitch(mm) | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke(mm) | 220 | 240 | 280 | 280 | 360 | 360 |
| Forging Power(TON) | 370 | 450 | 630 | 700 | 800 | 900 |
| Products NUT(IDN) / (ANSI) | M16-M18 7/16-7/8 |
M16-M22 5/8-7/8 |
M20-M24 5/8-1 |
M22-M27 7/8-1 |
M24-M30 7/8-1&1/8 |
M27-M32 1-1&1/4 |
| Production Rate(pcs/min) | 55-70 | 50-60 | 50-60 | 45-55 | 40-50 | 40-50 |
| Main Motor(HP) | 125 | 150 | 150 | 200 | 300 | 400 |
| Lubrication Motro | 1*2 | 2*1 1*1 |
2*1 1*1 |
3*1 1*1 |
3*1 1*1 |
3*1 1*1 |
| Lubricant(l.) | 1900 | 2050 | 2200 | 2600 | 3100 | 3100 |
| Approx. Weight(TON) | 40 | 48 | 60 | 80 | 140 | 150 |
| Machine Dimensions(m) L*W*H | 5.5*3*2.1 | 6.2*3.2*2.2 | 7*3.1*2.5 | 7.8*3*2.6 | 9*3.5*2.7 | 9*3.5*2.7 |
* No responsibility is taken for this data, which may be altered as improvements in manufacture dictate.
Automatic 7 Stations Punch Kick Out Cold Former
| Specification / Model | NF 8B-7SP | NF 11B-7SP | NF 14B-7SP | NF 17B-7SP | NF 19B-7SP | NF 21B-7SP | NF 24B-7SP |
|---|---|---|---|---|---|---|---|
| Forging Stations | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Cut-Off-Dia(MAX)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 |
| Cut-Off-Length(MAX)(mm) | 8 | 12 | 20 | 22 | 32 | 35 | 40 |
| P.K.O Length(MAX) | 9 | 13 | 18 | 19 | 20.5 | 21 | 22 |
| Dies Pitch(mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 |
| Ram Stroke(mm) | 50 | 60 | 120 | 130 | 160 | 180 | 200 |
| Forging Power(TON) | 35 | 65 | 100 | 135 | 165 | 200 | 295 |
| Products NUT(IDN) / (ANSI) | M3-M5 #4-#9 |
M3-M6 #4-5/16 |
M6-M10 1/4-3/8 |
M8-M10 5/16-3/8 |
M8-M12 3/8-1/2 |
M10-M14 3/8-9/16 |
M12-M16 7/16-5/8 |
| Production Rate(pcs/min) | 170-190 | 150-170 | 130-150 | 100-120 | 80-100 | 80-90 | 70-80 |
| Main Motor(HP) | 15 | 20 | 40 | 40 | 50 | 50 | 100 |
| Lubrication Motro | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 |
| Lubricant(l.) | 750 | 850 | 1000 | 1150 | 1350 | 1600 | 1800 |
| Approx. Weight(TON) | 4.2 | 5.5 | 8.7 | 11.5 | 17.5 | 26 | 31 |
| Machine Dimensions(m) L*W*H | 2.1*1.7*1.1 | 2.7*1.8*1.1 | 3.3*2.2*1.4 | 3.7*2.4*1.5 | 4.2*2.4*1.8 | 4.6*2.8*1.8 | 5.3*3*3 |
| Specification / Model | NF 27B-7SP | NF 33B-7SP | NF 36B-7SP | NF 41B-7SP | NF 45B-7SP | NF 50B-7SP |
|---|---|---|---|---|---|---|
| Forging Stations | 7 | 7 | 7 | 7 | 7 | 7 |
| Cut-Off-Dia(MAX)(mm) | 26 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length(MAX)(mm) | 45 | 60 | 70 | 80 | 80 | 80 |
| P.K.O Length(MAX) | 27 | 33 | 35 | 40 | 40 | 40 |
| Dies Pitch(mm) | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke(mm) | 220 | 240 | 280 | 280 | 360 | 360 |
| Forging Power(TON) | 390 | 480 | 630 | 700 | 800 | 900 |
| Products NUT(IDN) / (ANSI) | M16-M18 7/16-7/8 |
M16-M22 5/8-7/8 |
M20-M24 5/8-1 |
M22-M27 7/8-1 |
M24-M30 7/8-1&1/8 |
M27-M32 1-1&1/4 |
| Production Rate(pcs/min) | 55-70 | 506-0 | 50-60 | 45-55 | 40-50 | 40-50 |
| Main Motor(HP) | 125 | 150 | 200 | 200 | 300 | 400 |
| Lubrication Motro | 1*2 | 2*1 1*1 |
2*1 1*1 |
3*1 1*1 |
3*1 1*1 |
3*1 1*1 |
| Lubricant(l.) | 1900 | 2050 | 2200 | 2600 | 3100 | 3100 |
| Approx. Weight(TON) | 44 | 53 | 65 | 92 | 150 | 150 |
| Machine Dimensions(m) L*W*H | 5.5*3*2.1 | 6.2*3.2*2.2 | 7*3.1*2.5 | 7.8*3*2.6 | 9*3.5*2.7 | 9*3.5*2.7 |
* No responsibility is taken for this data, which may be altered as improvements in manufacture dictate.
