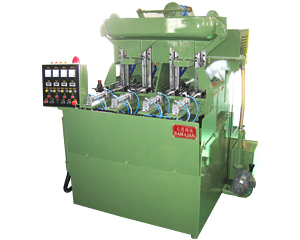

+ NUT TAPPING MACHINE
- 2 spindle nut tapping machine for round nut, square nut, non-standard hex nut or special nut.
Available from M4 to M30
> Specification
| MODEL | DL-NT-13B-4T | DL-NT-19B-4T | DL-NT-24B-4T | DL-NT-33B-4T | DL-NT-38B-4T |
|---|---|---|---|---|---|
| Capacity | #8-5/16 M5-M8 |
5-16-1/2 M8-M12 |
1/2-5/8 M12-M16 |
5/8-7/8 M16-M22 |
3/4~1 M8-M24 |
| Production Rate (MAX) | 400-200 | 260-160 | 160-120 | 120-90 | 110-80 |
| Motor (HP) | 1HP-2 | 2HP-4 | 3HP-4 | 5HP-6 | 7.5HP-6 |
| Lubricant (L) | 300 | 400 | 450 | 600 | 700 |
| TAP (mm) | M185 x 25R | M215 x 30R | M320 x 35R | M400 x 45R | M450 x 55R |
| Net weight (kgs) | 700 | 900 | 1500 | 3500 | 5150 |
| Machine Dimension (cm) | 128 x 153 x 160 | 130 x 168 x 159 | 162 x 172 x 176 | 182 x 216 x 226 | 194 x 230 x 242 |
