+ SEMI-TUBULAR RIVET
> Specification

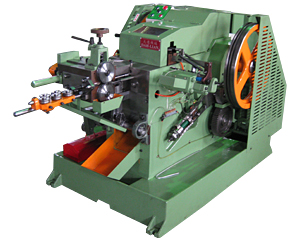

SEMI TUBULAR RIVET MAKING MACHINE
| Model | Blank Diameter |
Blank Length |
Stroke | Speed (pcs/min) |
Die Dia. | Cut-off | Punch Die (1st& 2nd) |
Machine dimension (LxWxH) |
Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| STR-4 | 1.5-4.0mm | 35mm | 10mm | 100-150 | 30mm | 17mm | 25mm | 160x100x120cm | 1100 |
| STR-5 | 2.0-5.0mm | 65mm | 10mm | 80-120 | 34.5mm | 19mm | 31mm | 190x110x118cm | 1450 |
| STR-6 | 2.5-6.0mm | 80mm | 12mm | 70-100 | 42mm | 22mm | 36mm | 220x125x130cm | 2000 |
