+ THREAD ROLLING MACHINE (CYLINDRICAL/HYDRAULIC TYPE)
DL-30

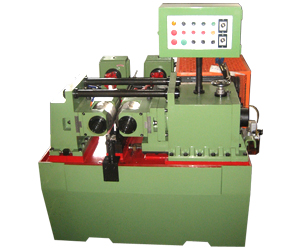

DL-50
> Specification
| MODEL | DL-30 | DL-50 | DL-70 | DL-100 | DL-120 | |
|---|---|---|---|---|---|---|
| Workpiece(in-feed) | Max. Diameter | 30mm | 50mm | 70mm | 100mm | 120mm |
| Min. Diameter | 6mm | 6mm | 20mm | 20mm | 50mm | |
| Max. Length | 70mm | 150mm | 150mm | 150mm | 150mm | |
| Pitch | 0.9-4.0mm | 0.9-4.0mm | 0.9-6.0mm | 1.0-8.0mm | 2.0-12.0mm | |
| Workpiece(thru-feed) | Max. Diameter | 30mm | 60mm | 70mm | 100mm | 120mm |
| Min. Diameter | 6mm | 6mm | 20mm | 20mm | 50mm | |
| Max. Length | No limit | No limit | No limit | No limit | No limit | |
| Pitch | 0.9-4.0mm | 0.9-4.0mm | 0.9-4.0mm | 1.0-8.0mm | 2.0-12.0mm | |
| Die | Speed Range | 30-60RPM | 30-60RPM | 15-52 RPM | 15-52 RPM | 15-52 RPM |
| Max. Outside Diameter | 150mm | 180mm | 190 | 200mm | 230mm | |
| Bore Diameter | 54mm | 70mm | 70mm | 80mm | 80mm | |
| Width | 70mm | 70mm-150mm | 150mm | 200mm | 220mm | |
| Center distance of Dies spindle | Max. | 150mm | 175mm | 250mm | 250mm | 250mm |
| Min. | 120mm | 135mm | 145mm | 145mm | 145mm | |
| Max. Rolling Pressure | 20 Tons | 40 Tons | 50 Tons | 60 Tons | 70 Tons | |
| Main Spindle Motor | 7.5HP,6P | 10HP,6P | 20HP,6P | 25HP,6P | 30HP | |
| Hydraulic Motor | 5HP | 7-1/2HP | 10HP | 10HP | 15HP | |
| Coolant Pump | 1/8HP | 1/8HP | 1/8HP | 1/4HP | 1/2HP | |
| Output (pc/min) | 6-35 pcs/min | 4-35 pcs/min | 4-20pcs/min | 3-20pcs/min | 2-20pcs/min | |
| Machine Net Weight(Approx) | 1150kgs | 2235kgs | 3200kgs | 3800kgs | 4500kgs | |
| Machine Dimension(LxWxH) | 170x110x145cm | 180x159x168cm | 230x180x187cm | 250x200x220cm | 280x250x250cm | |
